LOOK WHAT THE CAT DRAGGED IN.

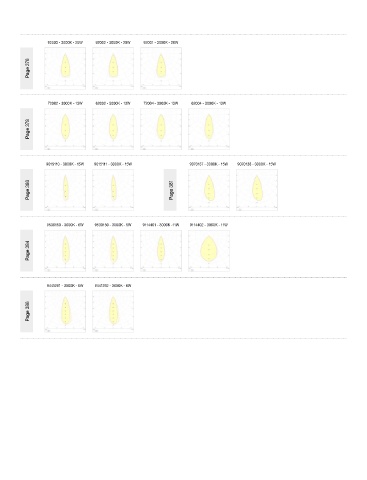

92003 - 3000K - 20W 92002 - 3000K - 20W 92001 - 3000K - 20W

Page 376 CRI 70+ CRI 80+ CRI 90+

72002 - 3000K - 13W 62002 - 3000K - 13W 72004 - 3000K - 13W 62004 - 3000K - 13W

AREA OF APPLICATION
AREA OF APPLICATION
Page 378 AREA OF APPLICATION Private homes, offices, and sales areas Museums, galleries, exquisite dining, and
Offices and shops for average use
exclusive products in stores

9015110 - 3000K - 15W 9015111 - 3000K - 15W 9070137 - 3000K - 15W 9070138 - 3000K - 15W What is UGR? UGR
UNIFIED GLARE RATING (UGR)
ZONE
OF GLARE ZONE
Page 380 Page 381 measure of glare that is used by lighting designers to help Uncomfortable
UGR stands for Unified Glare Rating. It is an objective
UGR 22
UGR 22
control the risk that occupants of a building will experience
Annoying
glare from the artificial lighting.
UGR 19
Comfortable
UGR values range from 40 (extremely high glare) to 5 (very UGR 16 85° 45°
low glare). In most situations, the less glare the better, so a Good
low UGR is better than a high UGR.
9530160 - 3000K - 6W 9530150 - 3000K - 6W 9114401 - 3000K -11W 9114402 - 3000K - 11W International standards such as EN12464 recommend maxi-
mum UGRs for different situations. UGR<19 is recommended
for many office and classroom settings.
Page 384 UGR is measured for an installation, not for a light fitting.
However, the design of a light fitting can have a significant
impact on the UGR of the installation where it is used.

9441291 - 3000K - 6W 9441292 - 3000K - 6W EEI BUTTONS
Included highly efficient LED boards
(cannot be replaced by the end consumer)
Page 386 LIGHT COLOUR Warm White Cool White

Neutral White

FUNCTIONS & COMFORT
Dimmable Not Dimmable Cut out

DRIVER & BULBS
Driver Included Bulb Excluded Bulb Included

Lamp E14 Lamp E27 Lamp G9 Lamp GU10
IP PROTECTION

IP20 Protection rating IP20 IP32 Protection rating IP32 IP44 Protection rating IP44

IP54 Protection rating IP54 IP65 Protection rating IP65 IP67 Protection rating IP67

SWITCHES & SENSORES

This luminaire can be switched on and off
by touching the specially designed
